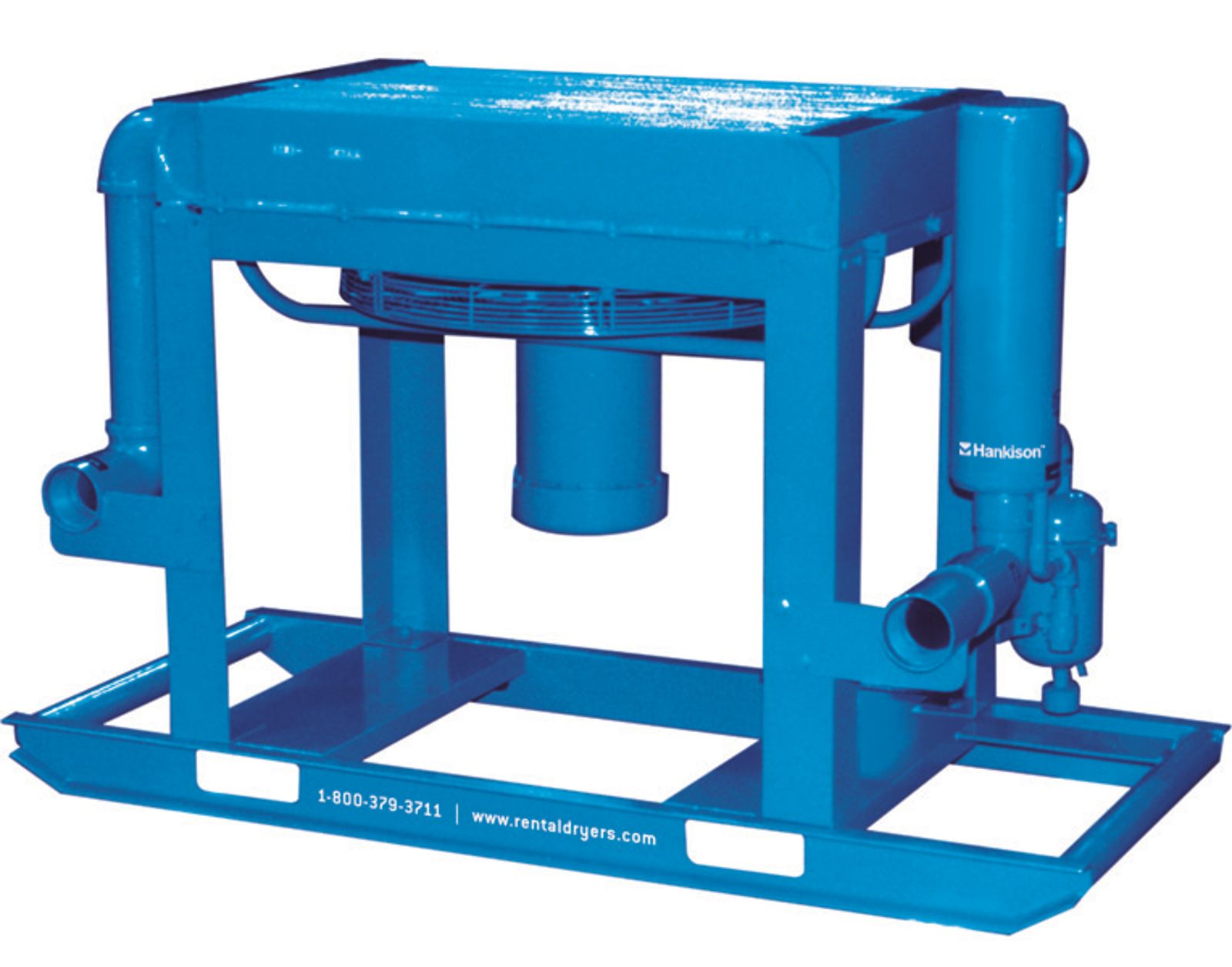

Aftercooler with air driven fan motor
Separator/filter
MODEL | CAPACITY |
SCFM | |
ACFS450 | 450 |
ACFS750 | 750 |
ACFS1000 | 1000 |
ACFS1600 | 1600 |
ACFS450
MODEL | DIMENSIONS (H) (INCHES) | DIMENSIONS (W) (INCHES) | DIMENSIONS (D) (INCHES) | WEIGHT (LBS) |
ACFS450 | 53 | 46 | 36 | 675 |
ACFS750
MODEL | DIMENSIONS (H) (INCHES) | DIMENSIONS (W) (INCHES) | DIMENSIONS (D) (INCHES) | WEIGHT (LBS) |
ACFS750 | 68 | 48 | 60 | 675 |
ACFS1000
MODEL | DIMENSIONS (H) (INCHES) | DIMENSIONS (W) (INCHES) | DIMENSIONS (D) (INCHES) | WEIGHT (LBS) |
ACFS1000 | 73 | 48 | 72 | 950 |
ACFS1600
MODEL | DIMENSIONS (H) (INCHES) | DIMENSIONS (W) (INCHES) | DIMENSIONS (D) (INCHES) | WEIGHT (LBS) |
ACFS1600 | 73 | 48 | 72 | 1000 |
Electronically driven fans:
Includes automatic interconnect for 3 phase units
Determines if incoming power is 230/3 or 460/3
Automatically selects motor leads to match supply voltage
Air driven fans:
Includes air motor, regulator, lubricator, and relief
Maximum scfm @ 5, 10, 15 and 20°F Approach Temperature to Ambient
Inlet Temperature °F | 150 | 200 | 250 | |||||||||
Approach Temperature °F | 5 | 10 | 15 | 20 | 5 | 10 | 15 | 20 | 5 | 10 | 15 | 20 |
AACE-1600 & AACA-1600 | 790 | 1440 | 1950 | 2260 | 710 | 1290 | 1720 | 1950 | 660 | 1200 | 1600 | 1860 |
AACE-2500 & AACA-2500 | 1220 | 2220 | 3000 | 3470 | 1090 | 1980 | 2680 | 3100 | 1035 | 1880 | 2500 | 2870 |
AACA-3000 | 1450 | 2650 | 3580 | 4120 | 1295 | 2360 | 3200 | 3710 | 1243 | 2260 | 3000 | 3450 |
Above capacities are based on 80 to 125 psig operating pressures. Maximum pressure drop is less than 3 psi | ||||||||||||
