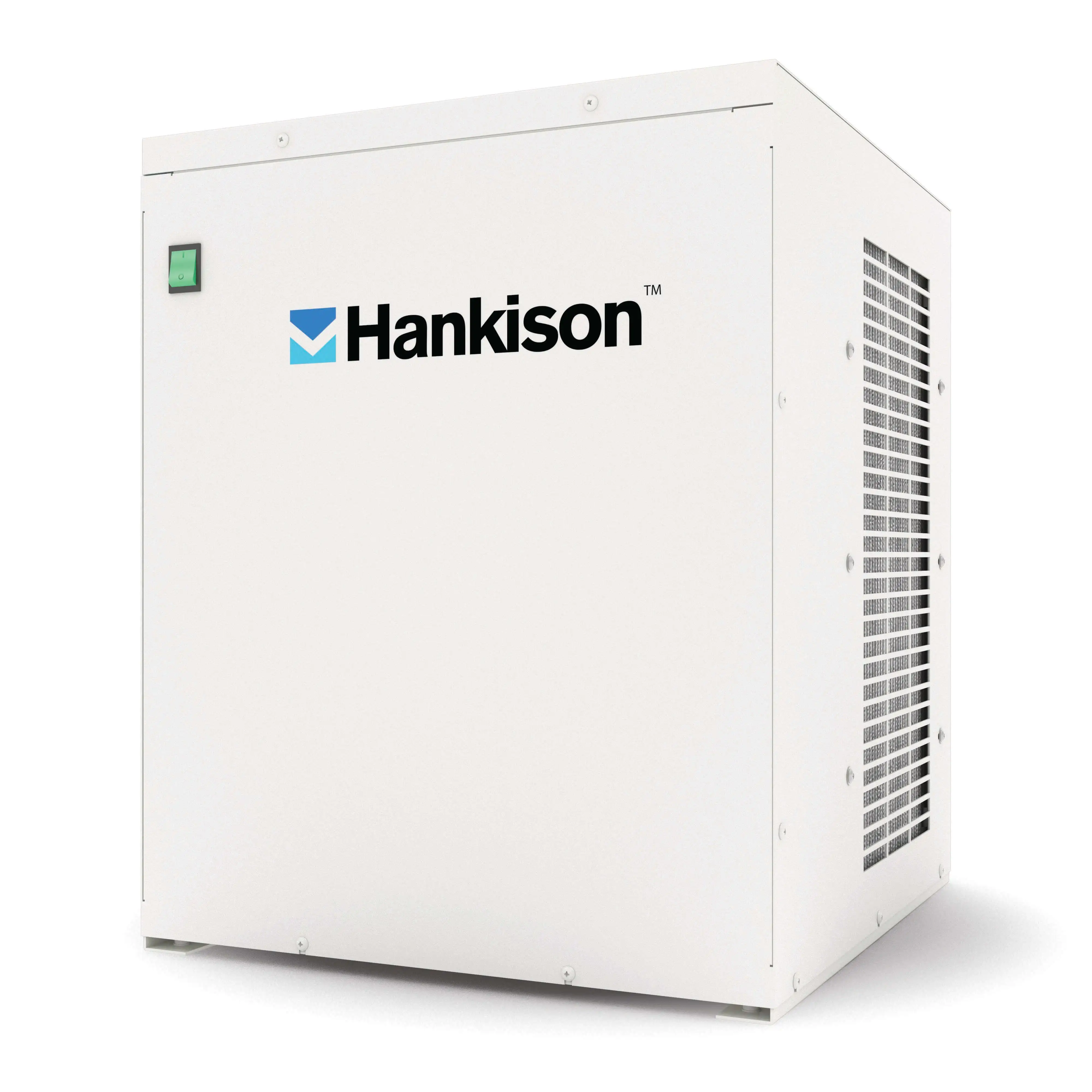

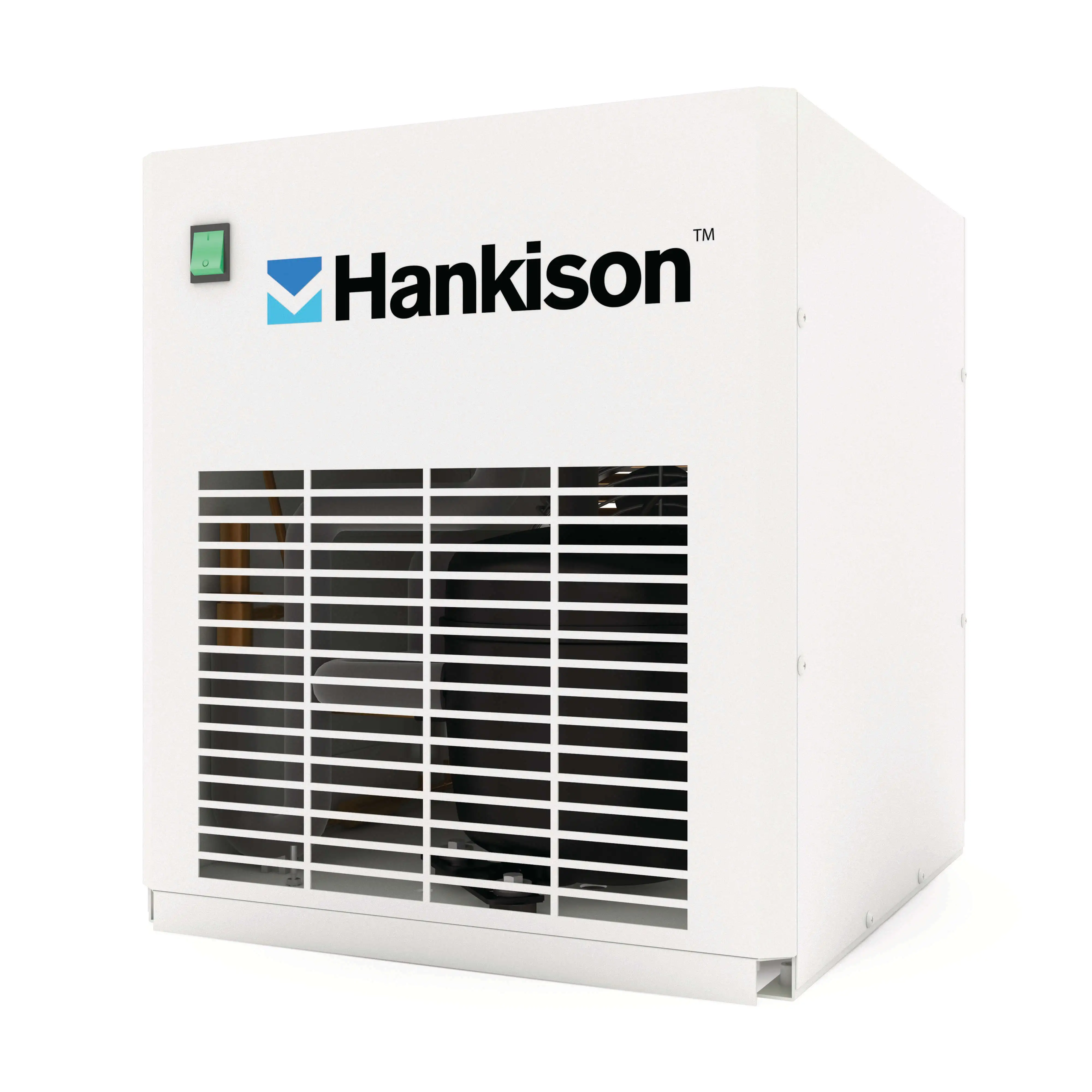

The Hankison VNCA Series delivers reliable compressed air drying in a compact, cost-effective package. Featuring environmentally friendly R513A refrigerant, an aluminum brazed plate heat exchanger, low power consumption, and a consistent Class 6 pressure dew point, these non-cycling dryers provide dependable moisture removal for industrial applications. Available from 32 to 150 SCFM, the VNCA Series offers easy installation, simple maintenance, and fast availability.
MODEL | SCFM* | NM³/H | VOLTAGES | SIZE | Size | KW | IN. | IN. | IN. | MM | MM | MM | LBS. | KG | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VNCA32 | 32 | 54 | 115/1/60 | 1/2" NPT (F) | O.D Φ6 TUBE | 0.26 | R513A | 17.9 | 20.2 | 21.0 | 454.7 | 513.1 | 533.4 | 62 | 28.1 |
VNCA42 | 42 | 71 | 115/1/60 | 1/2" NPT (F) | O.D Φ6 TUBE | 0.26 | R513A | 17.9 | 20.2 | 21.0 | 454.7 | 513.1 | 533.4 | 62 | 28.1 |
VNCA50 | 50 | 85 | 115/1/60 | 1/2" NPT (F) | O.D Φ6 TUBE | 0.47 | R513A | 17.9 | 20.2 | 21.0 | 454.7 | 513.1 | 533.4 | 69 | 31.3 |
VNCA75 | 75 | 127 | 115/1/60 | 3/4" NPT (F) | 1/8" FNPT | 0.51 | R513A | 21.0 | 22.6 | 25.0 | 533.4 | 574.0 | 635.0 | 87 | 39.5 |
VNCA100 | 100 | 170 | 460/3/60 | 3/4" NPT (F) | 1/8" FNPT | 0.55 | R513A | 21.0 | 22.6 | 25.0 | 533.4 | 574.0 | 635.0 | 92 | 41.7 |
VNCA150 | 150 | 255 | 460/3/60 | 3/4" NPT (F) | 1/8" FNPT | 1.15 | R513A | 21.0 | 22.6 | 25.0 | 533.4 | 574.0 | 635.0 | 97 | 44.0 |
MODEL | OVERALL DIMENSIONS | SHIP | SHIP | |||||
|---|---|---|---|---|---|---|---|---|
W | D | H | W | D | H | Weight | Weight | |
IN. | IN. | IN. | MM | MM | MM | LBS. | KG | |
VNCA32 | 17.9 | 20.2 | 21.0 | 454.7 | 513.1 | 533.4 | 62 | 28.1 |
VNCA42 | 17.9 | 20.2 | 21.0 | 454.7 | 513.1 | 533.4 | 62 | 28.1 |
VNCA50 | 17.9 | 20.2 | 21.0 | 454.7 | 513.1 | 533.4 | 69 | 31.3 |
VNCA75 | 21.0 | 22.6 | 25.0 | 533.4 | 574.0 | 635.0 | 87 | 39.5 |
VNCA100 | 21.0 | 22.6 | 25.0 | 533.4 | 574.0 | 635.0 | 92 | 41.7 |
VNCA150 | 21.0 | 22.6 | 25.0 | 533.4 | 574.0 | 635.0 | 97 | 44.0 |
