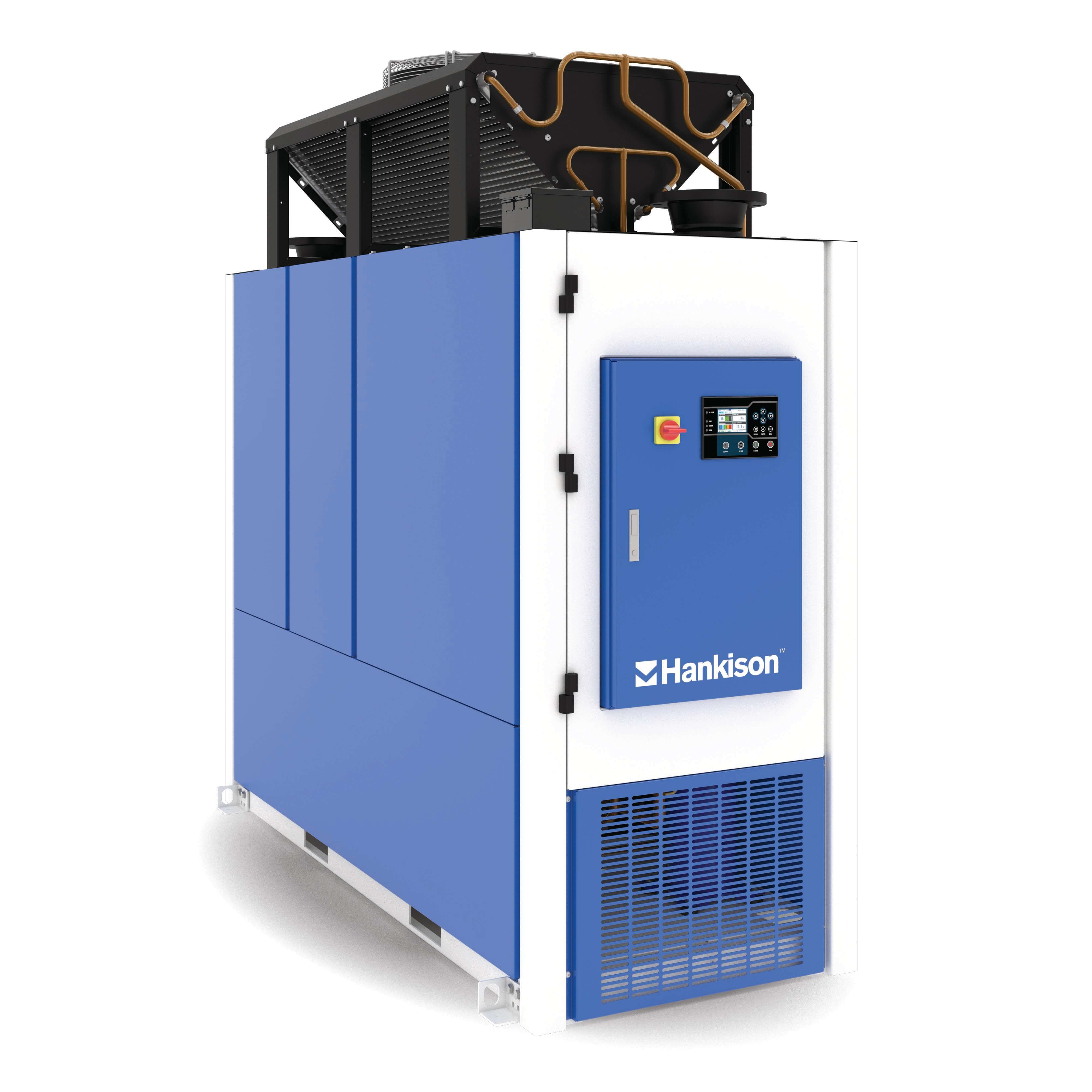

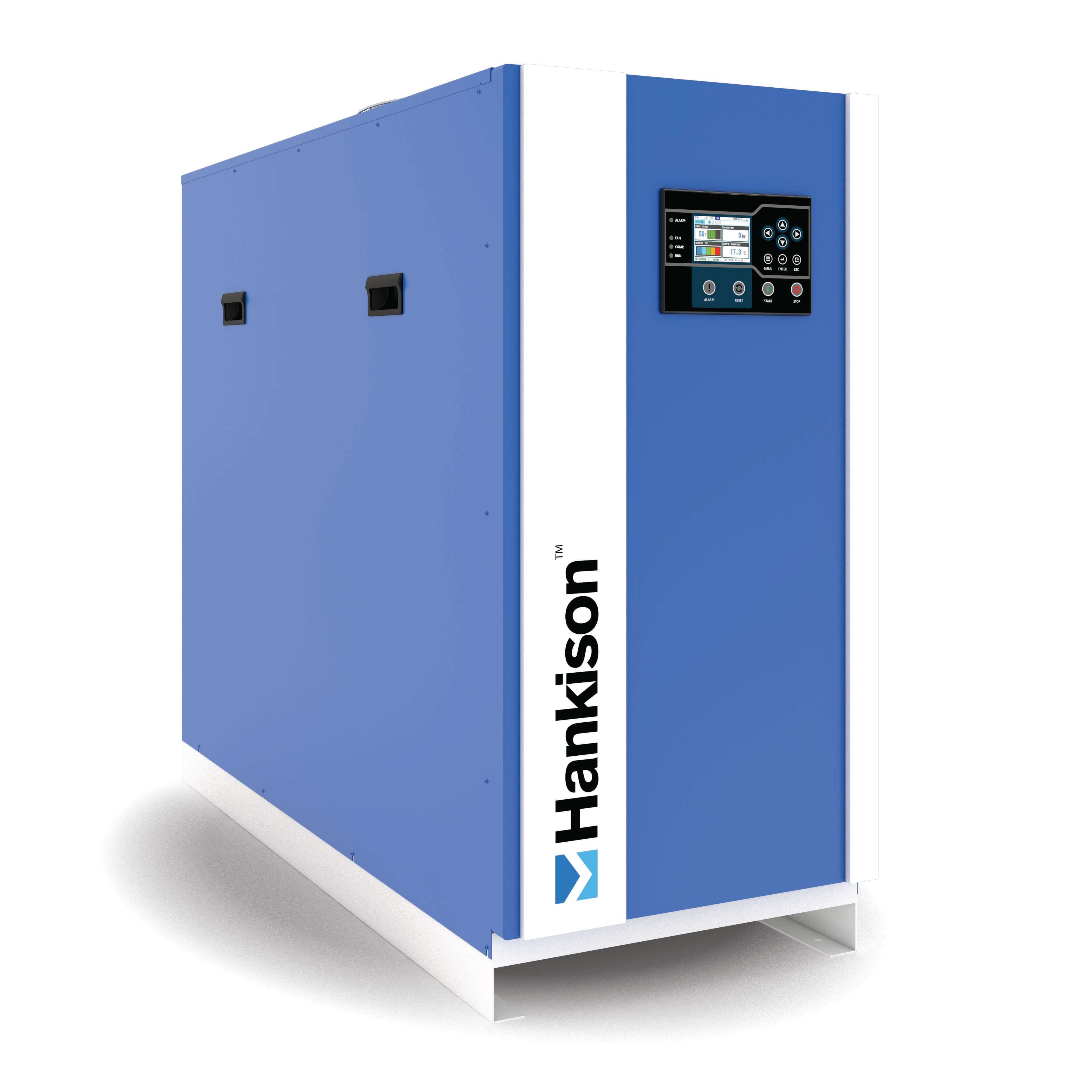

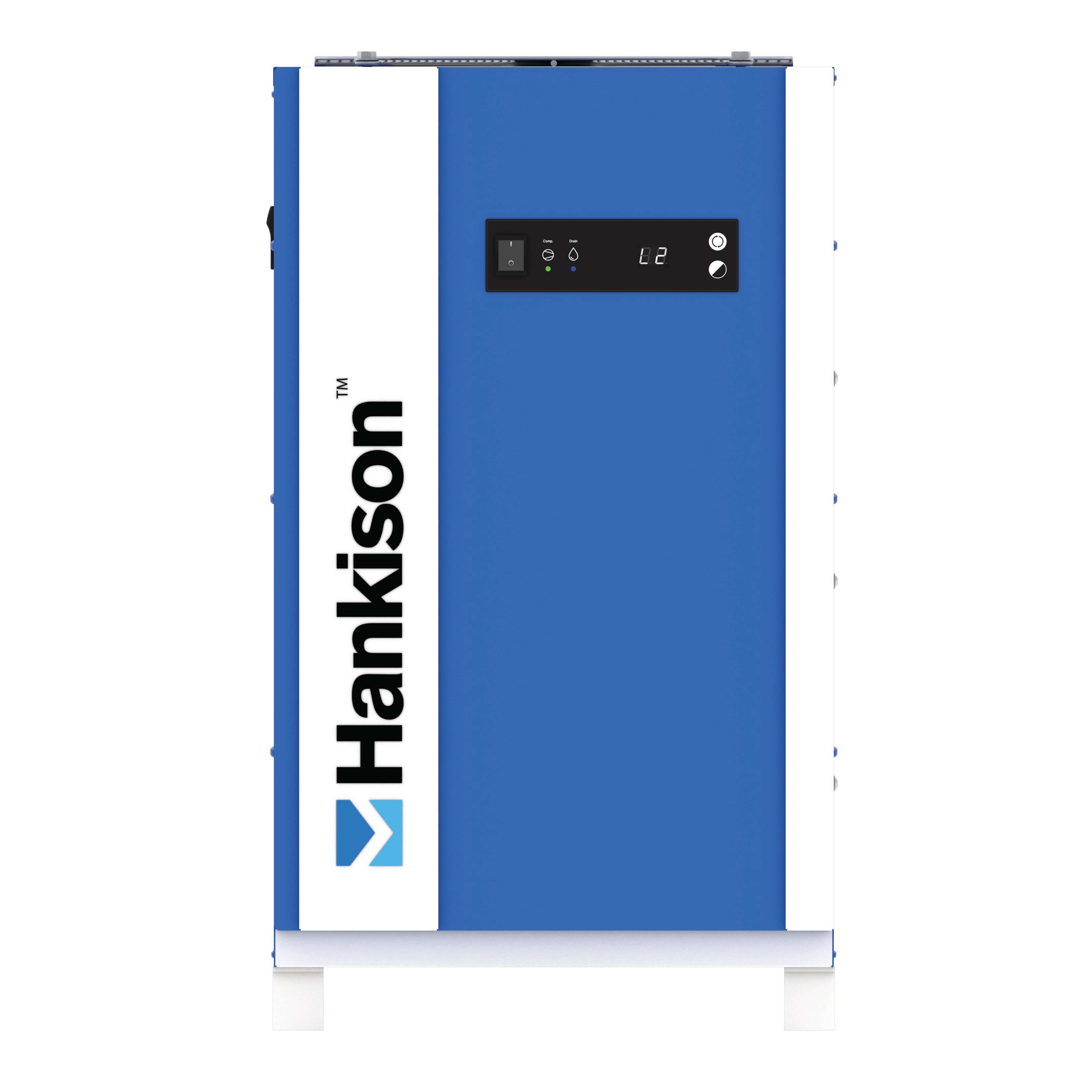

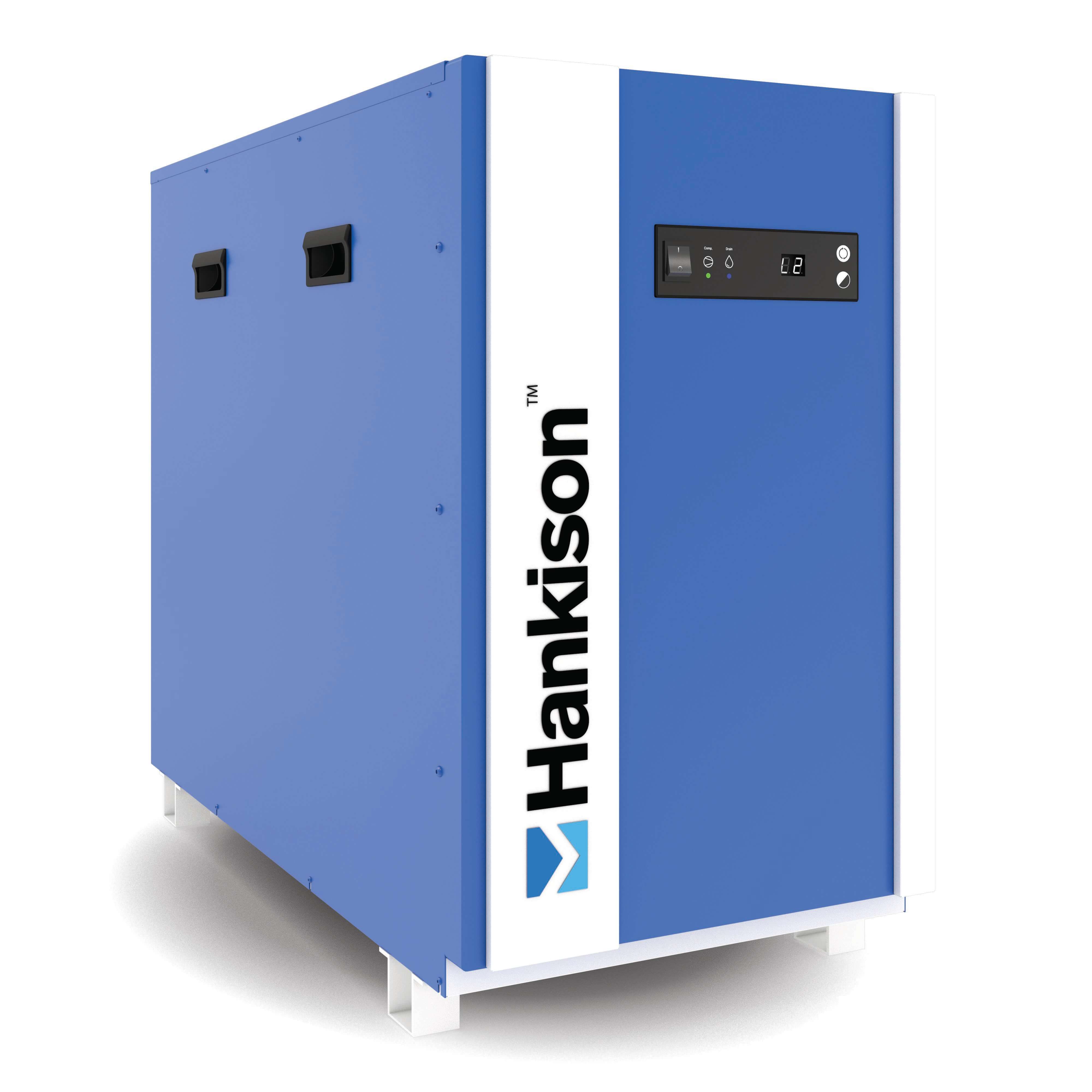

FLXA Series - Refrigerated Air Dryers 75-2000scfm

The FLXA Series refrigerated air dryers are engineered to deliver consistent, high-quality compressed air while reducing environmental impact. Designed with advanced heat transfer technology, Phase Change Material (PCM), and low GWP refrigerants, these cycling dryers efficiently remove moisture and contaminants across varying load conditions. The result is stable dew point performance, improved system reliability, and dependable operation for critical compressed air applications.

• Advanced drying technology with integrated heat exchange and separation

• Phase Change Material (PCM) for stable dew point performance

• Cycling operation adjusts to system demand

• Low GWP refrigerants (R513A or R454C)

• Stainless steel brazed plate heat exchanger

• Integral demister for moisture and particle removal

• Real-time dew point display and system status indicators

• Configurable air- or water-cooled models

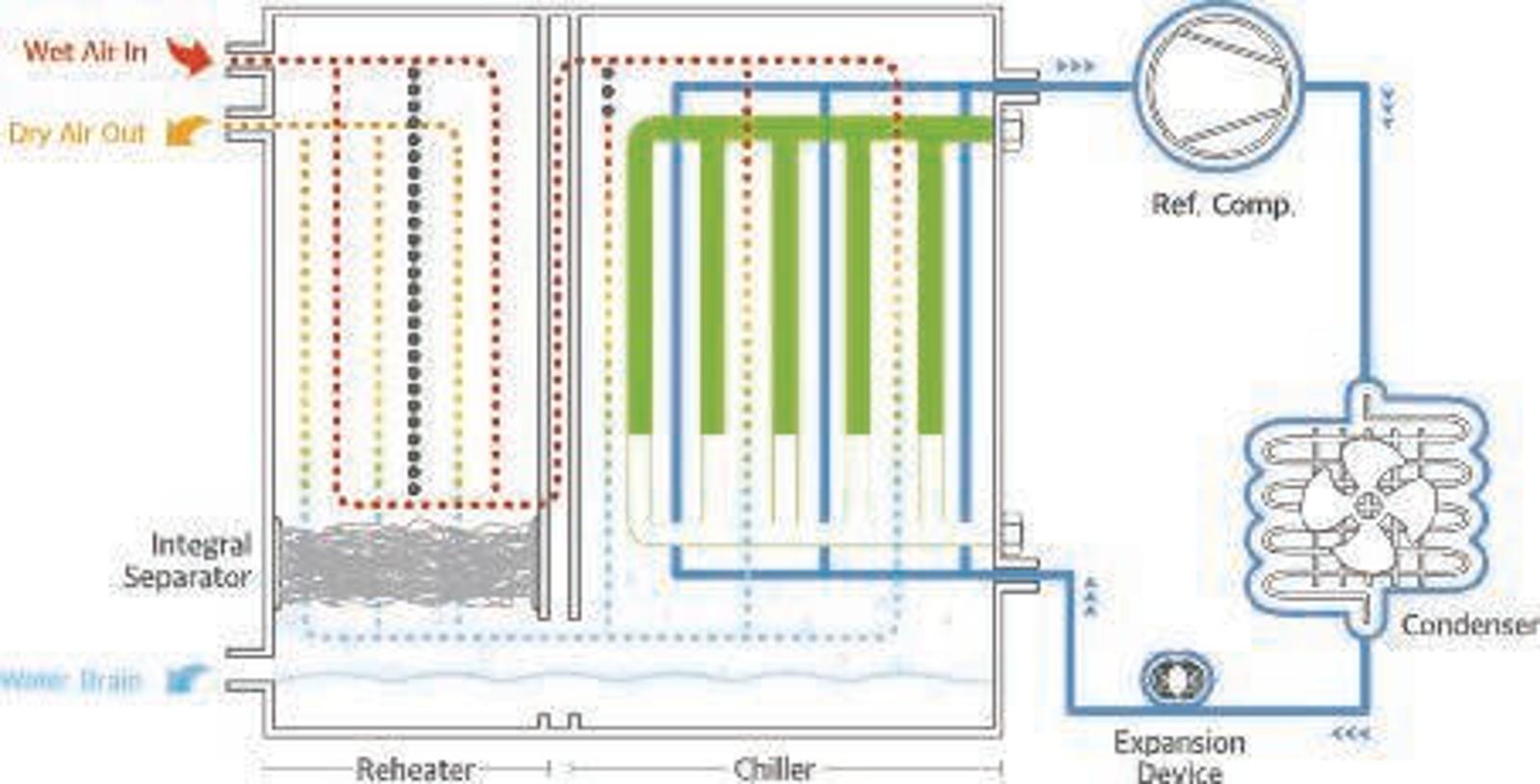

The FLXA Series uses Phase Change Material (PCM) thermal storage within an advanced heat exchanger to maintain stable and efficient drying performance. By storing and releasing thermal energy as demand changes, the system supports consistent dew point control while enabling the refrigeration circuit to cycle based on load. This approach improves energy efficiency while ensuring reliable moisture removal across varying operating conditions.

MODEL	Inlet Flow		Pressure Drop (PSID)	Voltages	IN/OUT Air Connect Size	Power Consumption (kW)	Refrigerant
MODEL	SCFM	NM³/H	Pressure Drop (PSID)	Voltages	IN/OUT Air Connect Size	Power Consumption (kW)	Refrigerant
FLXA1.1-A	75	127.4	3.4	115/1/60	1" NPT	0.48	R513A
FLXA1.2-A	100	169.9	2.9	115/1/60	1" NPT	0.60	R513A
FLXA1.5-A	150	212.4	1.8	115/1/60	2" NPT	1.11	R513A
FLXA2.1-A	200	339.8	2.3	460/3/60	2" NPT	1.28	R513A
FLXA3.1-A	300	509.7	2.1	460/3/60	2" NPT	1.86	R513A
FLXA4.5-A	450	764.6	3.0	460/3/60	2" NPT	2.75	R513A
FLXA5.5-A	550	934.4	3.3	460/3/60	2" NPT	2.91	R513A
FLXA8.1-A	800	1359.2	4.4	460/3/60	3" FLG	4.9	R454C
FLXA10.1-A	1000	1699	4.3	460/3/60	3" FLG	5.7	R454C
FLXA12.5-A	1250	2123.8	4.6	460/3/60	4" FLG	7.6	R454C
FLXA15.1-A	1500	2548.5	5.3	460/3/60	6" FLG	7.7	R454C
FLXA20.1-A	2000	3398	5.8	460/3/60	6" FLG	10.1	R454C
FLXA8.1-W	800	1359.2	4.4	460/3/60	3" FLG	3.5	R454C
FLXA10.1-W	1000	1699	4.3	460/3/60	3" FLG	4.2	R454C
FLXA12.5-W	1250	2123.8	4.6	460/3/60	4" FLG	6.1	R454C
FLXA15.1-W	1500	2548.5	5.3	460/3/60	6" FLG	6.2	R454C
FLXA20.1-W	2000	3398	5.8	460/3/60	6" FLG	9.3	R454C

MODEL	OVERALL DIMENSIONS						SHIP	Ship
	W	D	H	W	D	H	Weight	Weight
	IN.	IN.	IN.	MM	MM	MM	LBS.	KG
FLXA1.1-A	18.5	27.9	32.3	469.9	708.7	820.4	148	67.1
FLXA1.2-A	18.5	34.6	35.0	469.9	878.8	889.0	168	76.2
FLXA1.5-A	21.7	40.6	36.6	551.2	1031.2	929.6	240	108.9
FLXA2.1-A	21.7	42.9	36.6	551.2	1089.7	929.6	269	122
FLXA3.1-A	23.6	48.8	42.5	599.4	1239.5	1079.5	353	160.1
FLXA4.5-A	23.6	54.3	47.2	599.4	1379.2	1198.9	443	200.9
FLXA5.5-A	23.6	54.3	47.2	599.4	1379.2	1198.9	474	215
FLXA8.1-A	63.5	27.6	53.5	1612.9	701.0	1358.9	1012	459
FLXA10.1-A	63.5	27.6	53.5	1612.9	701.0	1358.9	1135	514.8
FLXA12.5-A	63.5	27.6	59.4	1612.9	701.0	1508.8	1290	585.1
FLXA15.1-A	90.8	33.9	87.9	2306.3	861.1	2232.7	2469	1119.9
FLXA20.1-A	90.8	33.9	87.9	2306.3	861.1	2232.7	2535	1149.9
FLXA8.1-W	58.3	27.6	53.5	1480.8	701.0	1358.9	1014	459.9
FLXA10.1-W	58.3	27.6	53.5	1480.8	701.0	1358.9	1149	521.2
FLXA12.5-W	58.3	27.6	59.4	1480.8	701.0	1508.8	1296	587.9
FLXA15.1-W	72.5	33.9	87.9	1841.5	861.1	2232.7	2624	1190.2
FLXA20.1-W	72.5	33.9	87.9	1841.5	861.1	2232.7	2690	1220.2
