Rental Filter Packages | Rental Air Treatment

Compressed Air as Clean as you Need it!

Choose from these filters and create your own package

Separator/filter

Removes solid particles, water droplets and oil aerosols three microns (mean diameter) and larger
Protects downstream equipment from damage or malfunction
Designed for use at locations where large liquid loads are present (downstream of aftercoolers, etc.)

Air line filter

Removes solid particles, water droplets and oil aerosols one micron (mean diameter) and larger
Protects downstream equipment from damage or malfunction

Coalescing type oil removal filter

Removes liquid aerosols (specifically oil) 0.01 microns and larger
Protects downstream instruments, equipment, products and processes from oil aerosol contamination

Oil vapor removal filter

Removes gaseous oil and various other hydrocarbon vapors
Removes offensive odors; prevents contamination of products and processes

Operating Methods

Air enters the compressor intake, with it solid particulate, gaseous hydrocarbons, and water vapor. Inside the compressor, oil aerosols, vapors, and solid wear particles are added to the compressed air stream. As air passes through aftercoolers and air lines downstream, oil and water vapors condense into liquid aerosols and droplets.

The result is solid, liquid, and vapor contaminants in your compressed air system, which, if not removed, reduce pneumatic equipment service life, cause air tools, motors and cylinders to operate inefficiently, contaminate products processes, foul instruments and control valves.

MODEL	CAPACITY @100 PSIG	IN/OUT CONNECTIONS
MODEL	SCFM	IN
FS375	450	3" NPT
FS700	750	3" NPT
FS1600	1000	3" NPT

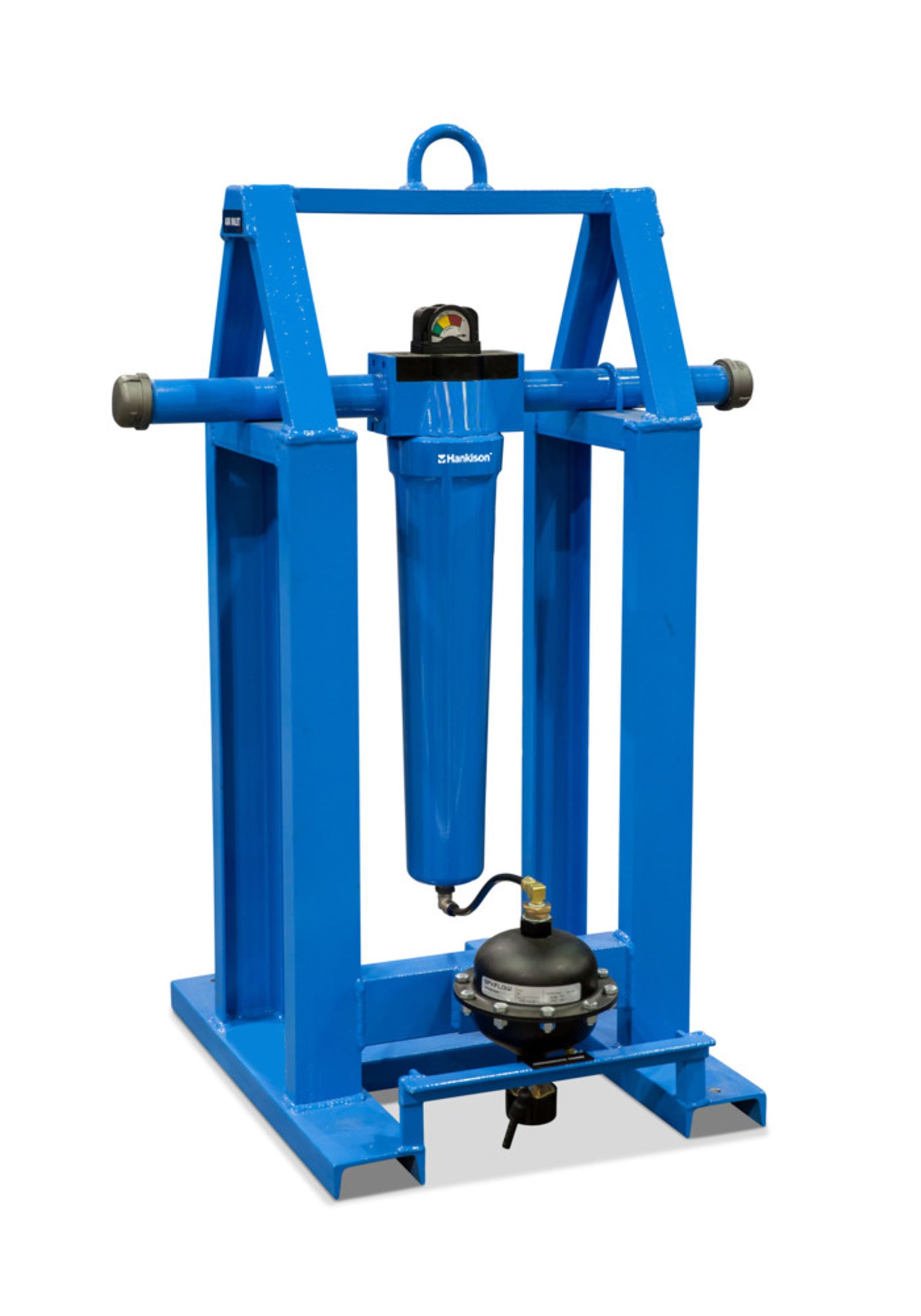

FS375

MODEL	DIMENSIONS (INCHES)			WEIGHT
MODEL	H	W	D	LBS
FS375	44	19	24	125
FS700	66	48	68	275
FS1600	66	48	90	400

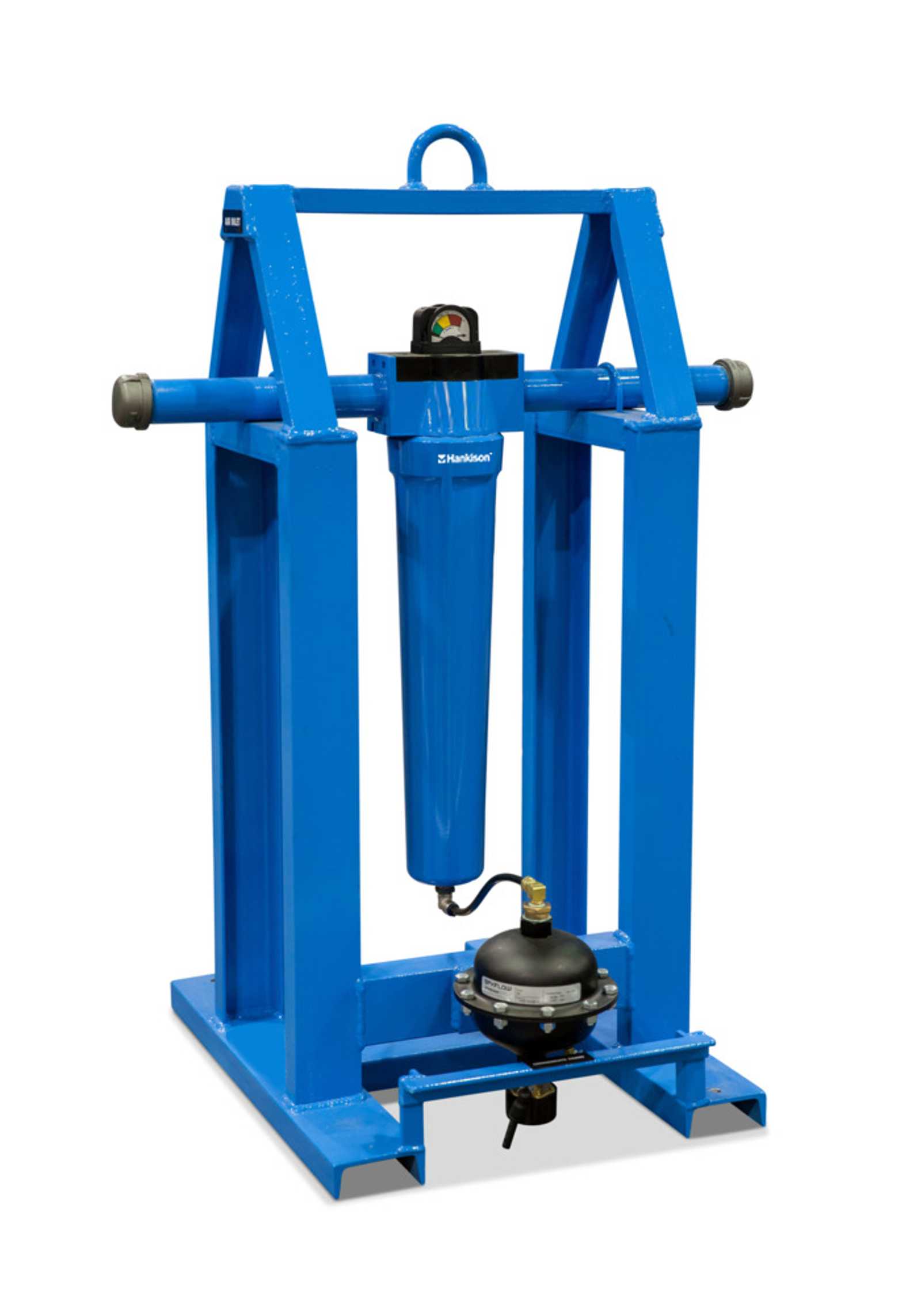

FS700

MODEL	DIMENSIONS (INCHES)			WEIGHT
MODEL	H	W	D	LBS
FS700	66	48	68	275

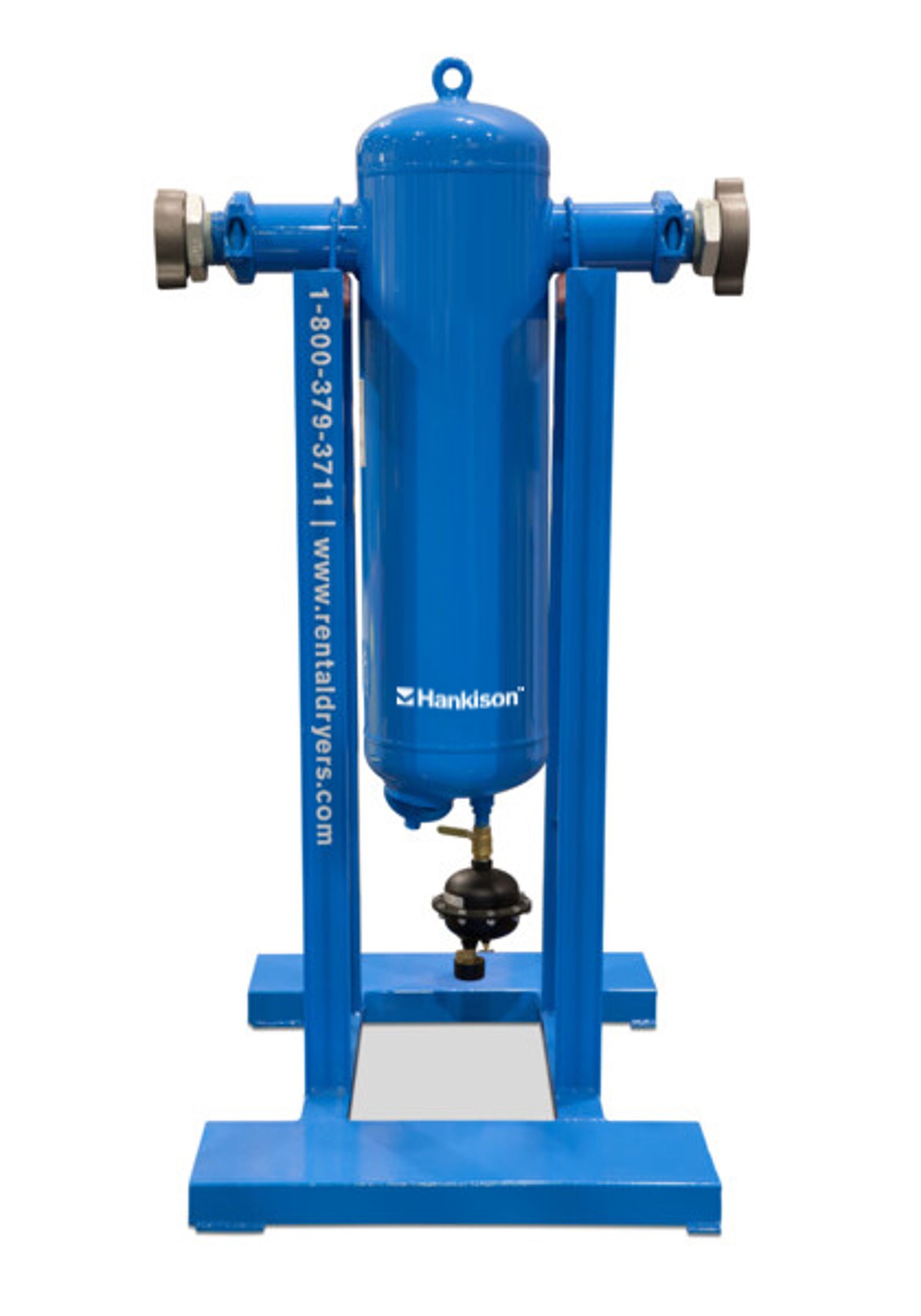

FS1600

MODEL	DIMENSIONS (INCHES)			WEIGHT
MODEL	H	W	D	LBS
FS1600	66	48	90	400

Package 1- for liquid oil removal

Air line filter and 0.01 micron coalescing filter

Removes oil aerosols for virtually oil free air (remaining oil is in a vapor state)
Air Line filter protects high efficiency filter from liquid overloading and solid particulate contamination
Patented design maintains high oil removal efficiency for the life of the cartridge
Removes all solid particles 0.01 microns and larger

Packages include automatic drains and filter element change out indicators.

Typical Applications

ApplicationEquipment Use

Spray Painting/Powder Coating	For point-of-use with oil-lubricated compressors to produce oil-free air suitable for applications requiring tempered conditions for product finishing
Blow Molding	For point-of-use with oil-lubricated compressors to produce oil-free air, optimizing production and end products for mold production
Pneumatic Instrumentation	Used on the front of oil-lubricated compressors to produce oil-free air to operate instrumentation in the manufacturing and industrial environment
Fluid Logic	For point-of-use with oil-lubricated compressors to produce oil-free air
Air Bearings	Oil-free air is necessary to ensure equipment is maintained and clean to reduce operational downtime
Pneumatic Conveying	Conveyor belts require clean air to move product in a facility, using this package in front of the oil-lubricated compressors will produce the required oil-free air
Food and Drug Packaging	Ensures air is clean and meets requirements to operate machinery utilized in clean environments
Electronics Manufacturing	To ensure optimal end product results for this very technical industry oil-free air is required

Package 2- for oil vapor removal

0.01 micron coalescing filter and activated carbon type oil vapor removal filter

Removes oil vapor and other hydrocarbons normally absorb-able by activated carbon (produces vapor concentrations of less than 0.01 ppm w/w)
Eliminates oily smell and taste
Coalescing filter protects carbon bed from liquid contamination
Final stage of media removes all solid particles 0.01 microns and larger

Packages include automatic drains and filter element change out indicators.

Typical Applications

ApplicationEquipment Use

Confined Spaces	When air flow is restricted it is important to deodorize it for workers safety
Food and Drug Packaging	Ensures air is clean and meets requirements to operate machinery utilized in clean environments; ensures clean air when compressed air contacts products for packaging
Analytical Instrumentation	Conditioning gas samples ahead of instruments provides peak performance
