Cool and Filter with an Aftercooler / Separator / Filtration System!

Features

Reduce compressed air temperatures to within 5°F to 20°F of ambient temperature
Makes air safe, usable, and capable of further filtering and drying
Eliminates up to 70% of water

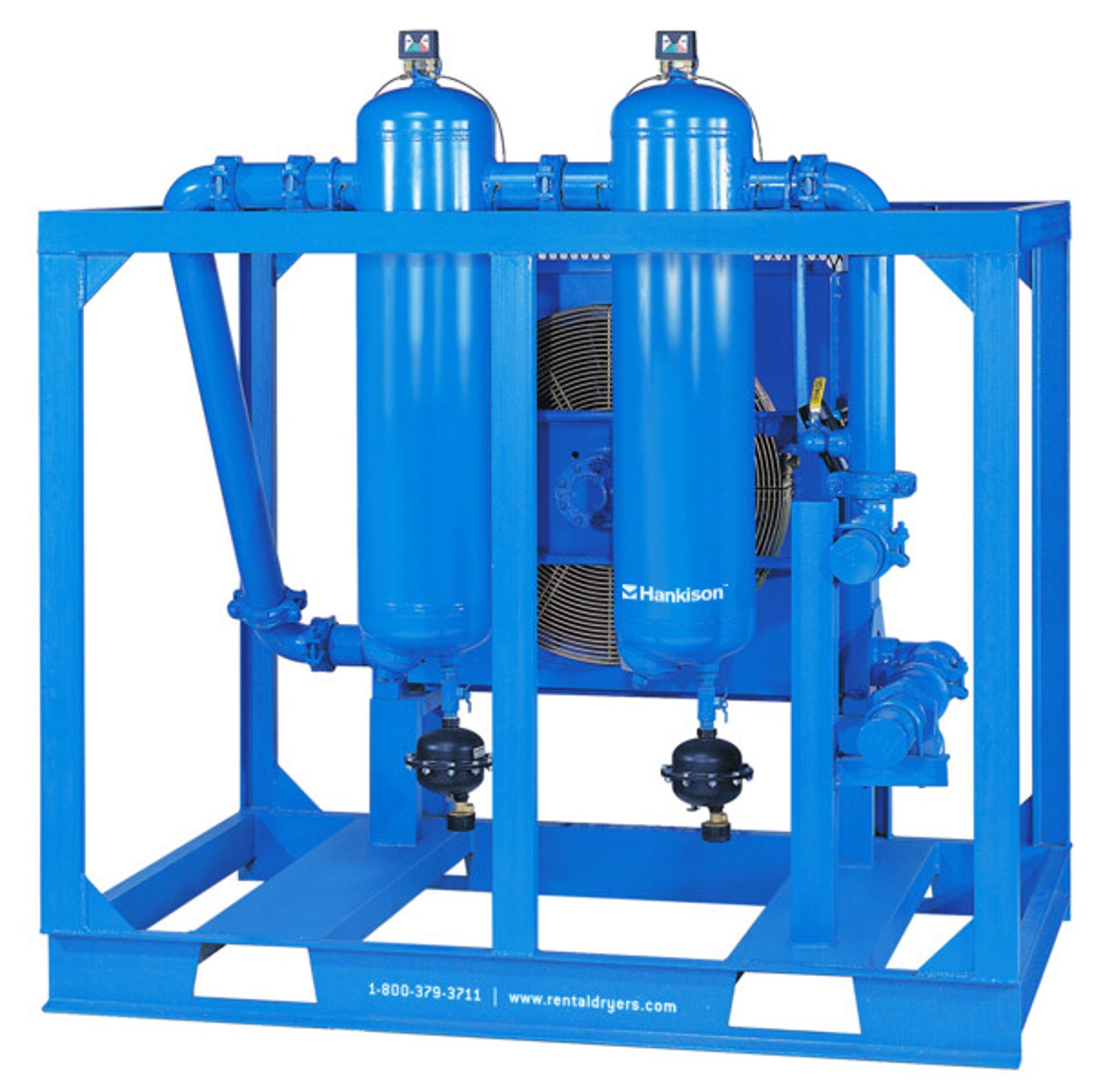

Aftercooler, separator, and automatic condensate drain piped and skid mounted
Maximum working pressures to 350 psig available

Specifications

Electrically Driven

Model	Motor	Voltage	Phase	Full Load AMPs	In/Out Connections
Model	TEFC	HP	110/230 V	NPT	Height (In)
AACE-450	1/2	110/1/60	1	9	2"
AACE-1000	2	110/1/60	1	18	3"
AACE-1600	1.5	110/1/60	1	18	3"
AACE-2500	7.5	230/3/60 460/3/60	1	22/11	4"
AACE-3000	10	230/3/60 460/3/60	1	28/14	4"

Air Driven

Model	Air Motor Usage	In/Out Connections
Model	SCFM	NPT
AACA-450	10	2"
AACA-1000	20	2"
AACA-1600	70	3"
AACA-2500	80	4"
AACA-3000	120	4"
AACA-3500	120	4"

MODEL	DIMENSIONS (INCHES)			WEIGHT LBS
MODEL	H	W	D	WEIGHT LBS
ACFS450	53	46	36	675
ACFS750	68	48	60	675
ACFS1000	73	48	72	950
ACFS1600	73	48	72	1000

User-friendly Construction

Mounted on rental skid
Prepiped with convenient in/out connections
No power required
Automatic condensate drains
Gauges on filters indicate need for element replacement

For use with portable compressors:

Construction, Bridge repair, Sandblasting and Painting

For use in industry:

Manufacturing plants, Refineries, Shipyards, Paper mills and Chemical plants
