Refrigerated compressed air dryer
Air flow rate 7200m³/h to 12000m³/h

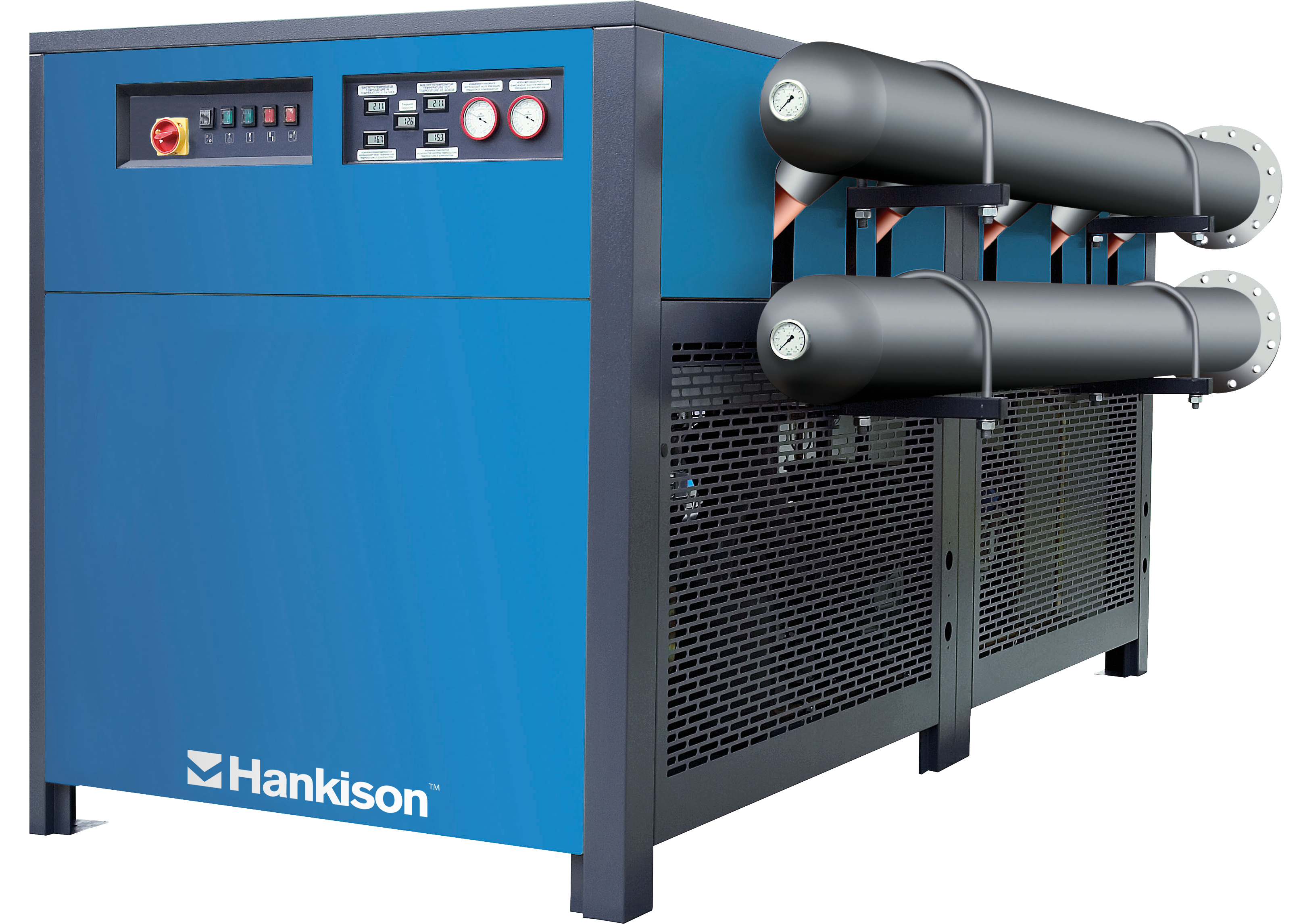

Hankison H-Series Large Size Air Dryers are built in accordance to PED certification and designed for 16 bar g operational pressure. The H-Series dryers are incorporating compact plate heat exchanger technology in order to maintain stable 3°C pressure dew points for the life of the unit.
All H-series dryers are equipped with a parallel stage piston compressor in order to save energy by idling pistons to the need according to the load.
Units are showing energy saving capabilities in combination with reliable and robust design serving the market since many years.
Model | Flow Rate | Connection | Dimensions | Weight | El. connection | Power Consumption | ||
A | B | C | ||||||
| m³/h |
| mm | kg | V/Ph/Hz | kW | ||
H-7200 | 7,200 | DN 150 | 1,572 | 3,229 | 2,402 | 1,850 | 400/3/50 | 11,5 |
H-8400 | 8,400 | 1,572 | 3,229 | 2,402 | 2,000 | 13,8 | ||
H-9600 | 9,600 | DN 200 | 1,590 | 3,244 | 2,402 | 2,200 | 15,3 | |
H-12000 | 12,000 | 1,590 | 3,244 | 2,402 | 2,600 | 17,7 | ||
* ISO 7183: Based on the intake volume of the compressor at +20ºC ans 1 bar (g), operating pressure 7 bar (g), inlet temperature +35ºC, ambient or cooling water temperature at +25ºC, pressure dew point -40ºC / 100% RH. Technical data and specifications are subject to change without prior notice.
