Desiccant Dryer Rentals | Hankison

For Dew Points of -40ºF and -100ºF

Mounted particulate and oil removal prefilters c/w automatic condensate drains and a one-micron afterfilter - no field
Heavy-duty frame with lifting lugs and forklift channels for easy handling
NEMA 4, 115/1/60 electrics - suitable for outdoor operation
Units can be field adjusted for -40°F or -100°F pressure
Full instrumentation package provides ready indication of a system malfunction
High-pressure models available

*Transport desiccant dryers on air-ride truck only

Models RDH115 - RDH5400G

MODEL	INLET FLOW	FLOW OUTLET		WORKING PRESSURE	MAX. IN / OUT CONNECTIONS
	INLET FLOW	@ -40°F P.D.P	@ -100°F P.D.P.	WORKING PRESSURE	MAX. IN / OUT CONNECTIONS
	SCFM¹	SCFM¹		PSIG	IN
RDH115	115	98	97	150	1" NPT
RDH165	165	141	140	150	1 1/2" NPT
RDH260	260	223	220	150	2" NPT
RDH370	370	317	312	150	2" NPT
RDH450	450	385	380	150	2" NPT
RDH590	590	505	498	150	2" NPT
RDH750	750	642	634	150	2 1/2" NPT
RDH930	930	796	786	150	2 1/2" NPT
RDH930G	930	796	786	150	2 1/2" NPT
RDH1130	1130	967	955	150	3" NPT
RDH1350	1350	1156	1141	150	3" NPT
rdh1550	1550	1327	1309	150	3" Boss
rdh1550G	1550	1327	1309	250	3" Boss
RDH2100	2100	1797	1774	150	3" Boss
RDH2100G	2100	1797	1774	150	3" Boss
RDH3000	3000	2567	2534	150	3" Boss
RDH3000G	3000	2567	2534	150	2" x 3" Boss
RDH4100	4100	3465	3445	150	6" FLG
RDH5400	5400	4620	4561	150	6" FLG
RDH5400G	5400	4620	4561	150	4" x 3" Boss

1 Flow shown is based on inlet compressed air at 100 psig and 100°F

Models RDHHP495 - RDHHP5200G - High Pressure @ 350 PSIG

MODEL	INLET FLOW	FLOW OUTLET		WORKING PRESSURE	MAX. IN / OUT CONNECTIONS
	INLET FLOW	@ -40°F P.D.P	@ -100°F P.D.P.	WORKING PRESSURE	MAX. IN / OUT CONNECTIONS
	SCFM¹	SCFM¹		PSIG	IN
RDHHP495	900	828	818	365	3" NPT
RDHHP715	1300	1196	1186	365	3" NPT
RDHHP1550G	2800	2576	2550	365	3" Boss
RDHHP5200G	9300	8530	8400	365	4" x 3" Boss

1 Flow shown is based on inlet compressed air at 100 psig and 100°F

MODEL	DIMENSIONS (INCHES)			WEIGHT
MODEL	H	W	D	LBS
RDH115	90	40	34	650
RDH165	90	40	34	825
RDH260	90	42	47	1350
RDH370	90	42	60	1650
RDH450	92	42	60	1800
RDH590	95	50	70	2860
RDH750	97	58	72	3450
RDH930	105	58	72	3800
PDH930G	80	76	73	3500
RDH1130	105	58	72	4300
RDH1350	109	58	72	4700

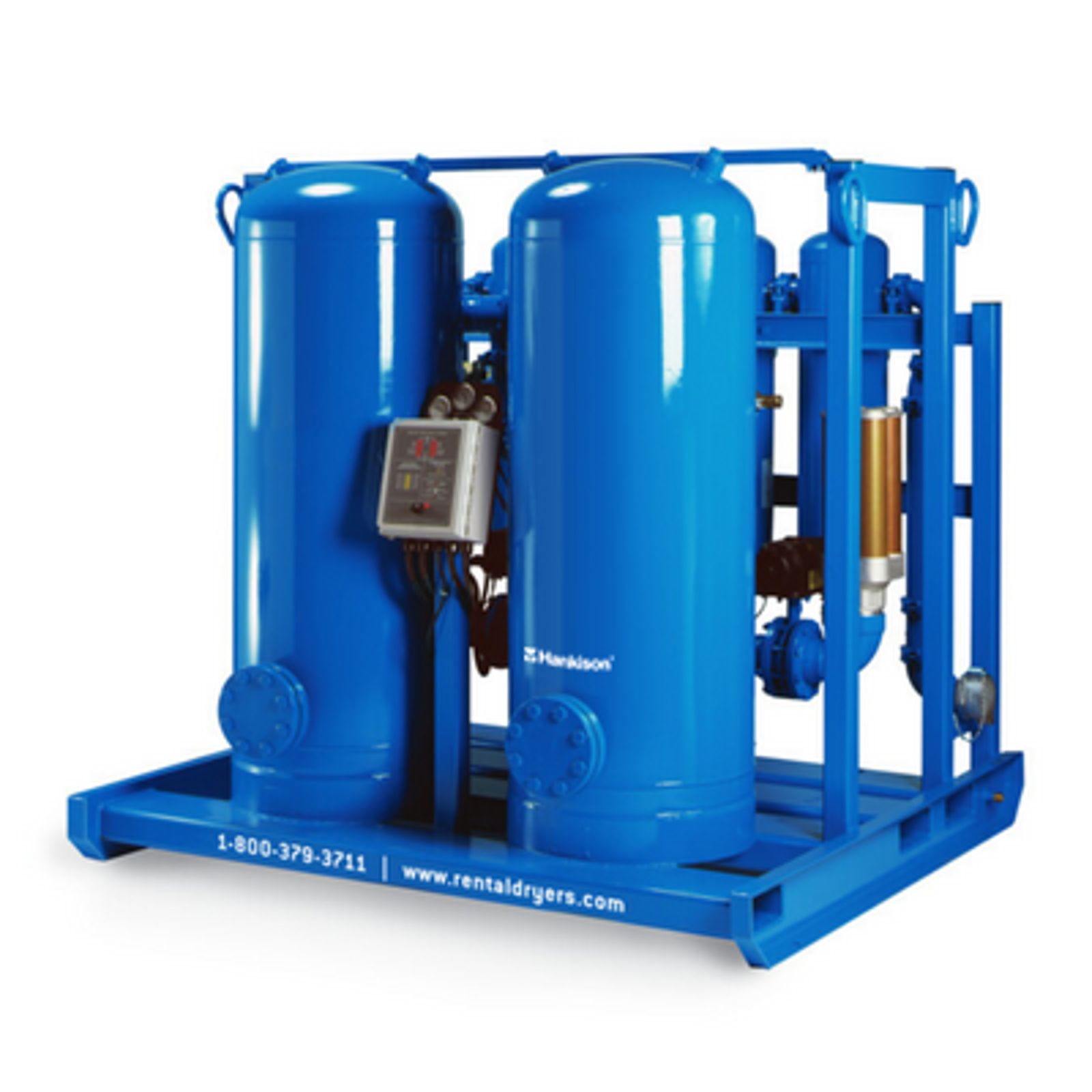

rdh1550	100	78	96	5000
rdh1550G	79	78	83	5500
RDH2100	106	80	73	6900
